Lugsulation – the fully insulated connection technology
Sometimes especially the really good solutions turn out to be stunningly easy. Lugsulation by Hagemann Systems gives an example. Its name is composed of “lug” – as in cable lug – and “insulation”. Instead of just covering contacts with a cap – as it has been usual up to now – Lugsulation ensures their full insulation. Corrosion and fault currents become a thing of the past. Short circuits, which can inadvertently arise from a bare contact during assembly, are also excluded.

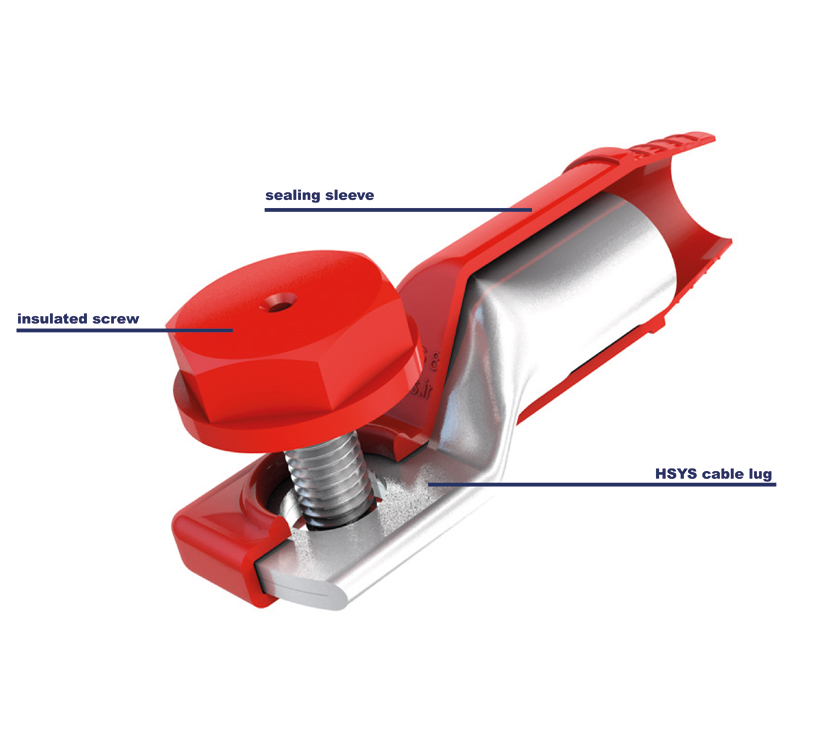

The 3 components of Lugsulation©
Your added value
low maintenance
The sealing system of the lugsulation prevents the penetration of aggressive media and reduces the maintenance effort.
Touch protection
The lugsulation is certified according to protection class IP64. With further measurements, a protection class of up to IP68 is possible.
Corrosion-free
No penetration of aggressive media such as dirt, moisture or acid is possible, so the contacts remain corrosion-free.
Fire protection
The lugsulation is also available with fire-safe material according to UL94 (V0).
Self-assembly
The lugsulation can be assembled easily and quickly .
Cost-efficient
Reduced maintenance and follow up costs due to damaged contacts are prevented.
Are you having contact issues?

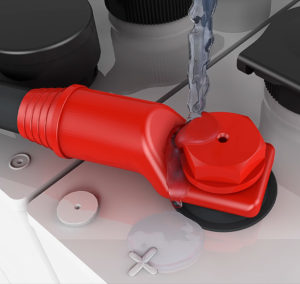

Instead of simply covering contacts with a cap, lugsulation ensures that the contact is completely isolated. Corrosion and fault currents become a thing of the past. Look for yourself.
Concrete scope of application
Insufficient insulation of live contacts is a common and cross-industry issue. It causes risk of performance fail up to complete system collapse.
Frequentproblems
Leakage current, short circuits, contact corrosion – there can be many troubles caused by insufficient insulated contacts. We have got the solutions!
Solutions for yourcontact issues
Lugsulation, as a single component, offers a great variety of trouble shooting options for different lugsulation applications.
